Case Study: Registering a Derivative of Ippy

A Case Study showing how PiPi, a generative pfp project, registers derivatives of Story's official Ippy mascot.

PiPi is a free generative pfp project on Story that lets you mint derivative artworks of Ippy, Story's official mascot. Ippy has Non-Commercial Social Remixing (NCSR) terms attached, which means anyone can use it or create derivative works as long as it's not used commercially and proper attribution is shown.

Original Ippy

View the original Ippy mascot on our explorer.

PiPi Derivative

View a derviative PiPi on our explorer.

View PiPi Contract

View the PiPi contract source code.

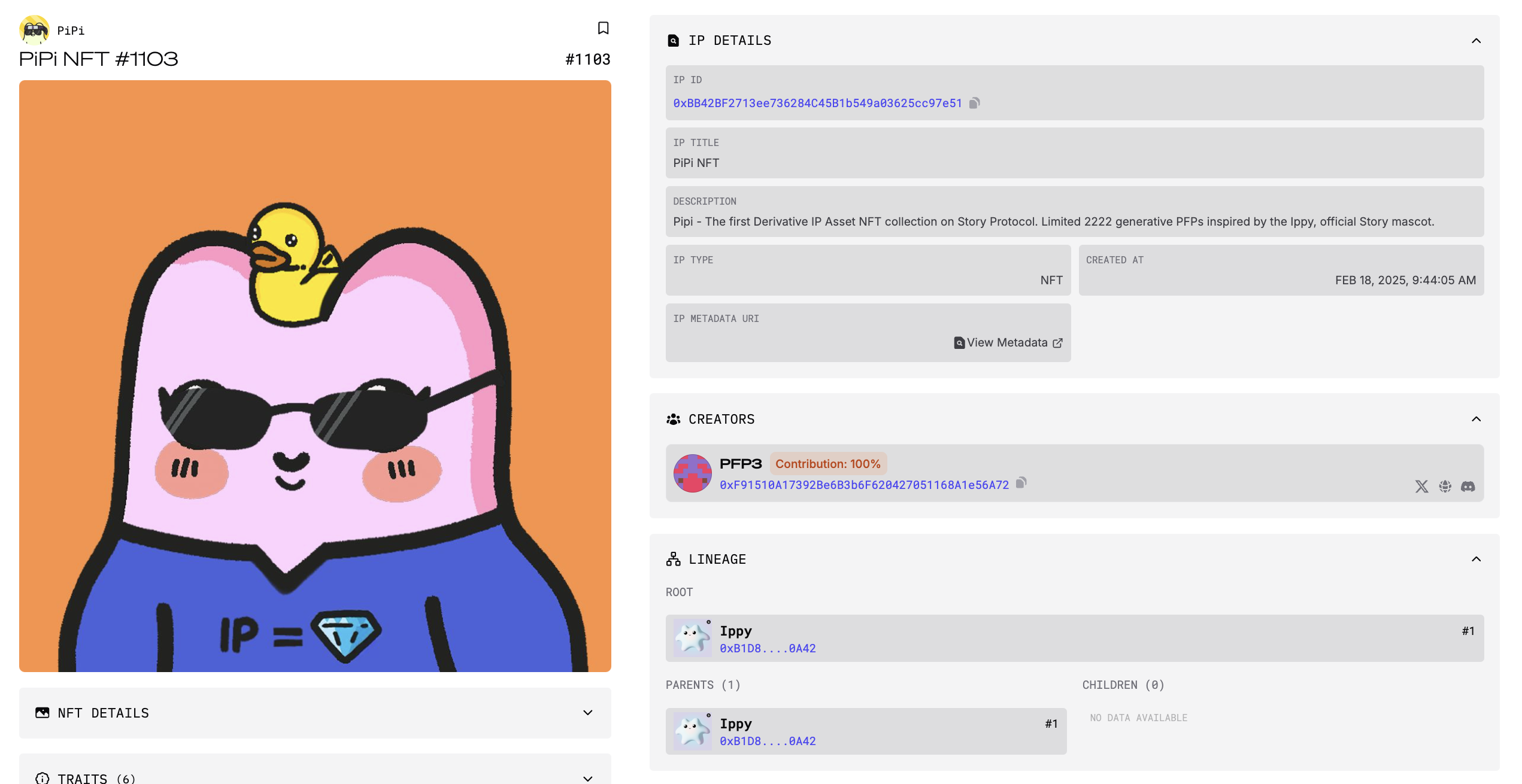

When a PiPi is linked as a derivative of Ippy, it automatically inherits the same license terms (NCSR) and is linked in its ancestry graph, which you can see directly on our explorer:

In the bottom right, you can see Ippy is the root IP of this PiPi.

In the following tutorial, you will learn how exactly these PiPi images were properly registered as derivatives of the official Ippy IP.

⚠️ Prerequisites

There are a few steps you have to complete before you can start the tutorial.

  1. Complete the Setup Your Own Project

1. Setup Metadata

Before we register our new PiPi IP, we need to set up its metadata. There are two types of metadata:

  1. NFT Metadata
  2. IP Metadata

NFT vs. IP Metadata

Learn how to properly set up NFT and IP Metadata.

Using this PiPi as an example, here is what the NFT & IP metadata should be:

{
  "name": "PiPi NFT #1103",
  "image": "https://ipfs.io/ipfs/bafybeigsv4cgacndijwy6b7qhxbseonrybrcpbh47zrlm64gsjm4mlpb2q/nft_1103.jpeg",
  "attributes": [
    {
      "trait_type": "Bg",
      "value": "Orange"
    },
    {
      "trait_type": "Body",
      "value": "Pink"
    },
    {
      "trait_type": "Eyes",
      "value": "Cute"
    },
    {
      "trait_type": "Cloth",
      "value": "Blue"
    },
    {
      "trait_type": "Glasses",
      "value": "Neo"
    },
    {
      "trait_type": "Hat",
      "value": "Duck"
    }
  ],
  "description": "Pipi - The first Derivative IP Asset NFT collection on Story Protocol. Limited 2222 generative PFPs inspired by the Ippy, official Story mascot."
}
{
  "title": "PiPi NFT",
  "description": "Pipi - The first Derivative IP Asset NFT collection on Story Protocol. Limited 2222 generative PFPs inspired by the Ippy, official Story mascot.",
  "image": "https://ipfs.io/ipfs/bafybeigsv4cgacndijwy6b7qhxbseonrybrcpbh47zrlm64gsjm4mlpb2q/nft_1103.jpeg",
  "imageHash": "0xb930f3ba19350bddbcd8c180a3127086f6e454d29cd5b3db613c70bae2848329",
  "mediaUrl": "https://ipfs.io/ipfs/bafybeigsv4cgacndijwy6b7qhxbseonrybrcpbh47zrlm64gsjm4mlpb2q/nft_1103.jpeg",
  "mediaHash": "0xb930f3ba19350bddbcd8c180a3127086f6e454d29cd5b3db613c70bae2848329",
  "mediaType": "image/jpeg",
  "creators": [
    {
      "name": "PFP3",
      "address": "0xF91510A17392Be6B3b6F620427051168A1e56A72",
      "description": "PFP Generator",
      "image": "https://utfs.io/f/XyGBmmuHQK18FodS0WDuqCo1LVerXR7sgm8vJnESazWcM5yB",
      "socialMedia": [
        {
          "platform": "twitter",
          "url": "https://x.com/pfp3_"
        },
        {
          "platform": "website",
          "url": "https://pfp3.io"
        },
        {
          "platform": "discord",
          "url": "https://discord.gg/pfp3"
        }
      ],
      "role": "creator",
      "contributionPercent": 100
    }
  ],
  "tags": [
    "PiPi",
    "Derivative IPA",
    "NFT",
    "PF3",
    "PFP"
  ], // experimental field
  "ipType": "NFT" // experimental field
}

Once you have metadata written, you can upload them to IPFS and will later set it when minting our NFT.

2. Minting an NFT

When you want to register an IP on Story, you must first mint an NFT. This NFT represents the ownership over the 🧩 IP Asset.

View PiPi Contract

View the PiPi contract source code.

Here is part of the _mintNFT function in the PiPi.sol contract:

contract PiPi is ERC721, Ownable, IERC721Receiver {

  // ... some code here ...

  function whitelistMint() external payable returns (string memory, address) {
    require(whitelistMintEnabled, "Whitelist mint is not active");
    require(whitelist[msg.sender], "Address not whitelisted");
    require(mintedCount[msg.sender] < WHITELIST_MAX_P_WALLET, "Whitelist mint limit reached");
    require(_totalSupply < MAX_SUPPLY, "Max supply reached");

    return _mintNFT(msg.sender);
  }

  function _mintNFT(address recipient) internal returns (string memory, address) {
    uint256 newTokenId = _totalSupply + 1;
    _safeMint(address(this), newTokenId);

    address ipId = _registerAsIPAsset(newTokenId);

    string memory nftUri = tokenURI(newTokenId);
    bytes32 metadataHash = keccak256(abi.encodePacked(nftUri));
    CORE_METADATA_MODULE.setAll(ipId, nftUri, metadataHash, metadataHash);

    registerDerivativeForToken(ipId);

    _safeTransfer(address(this), recipient, newTokenId, "");

    // ... more code here ...

    return (nftUri, ipId);
  }
}

As you can see, the user calls whitelistMint which then calls _mintNFT after checking if the user is on a whitelist. On line 16, we are then minting a new NFT to the contract.

📘

Why do we mint an NFT to the contract and not the user?

We later have to register the IP as a derivative of Ippy. Only the owner (the address holding the NFT) can register an IP as a derivative of another. So, we will mint the NFT to the contract => contract registers NFT as IP and then later as a derivative of Ippy => transfer NFT to the user.

3. Registering NFT as IP

Once we have minted a new NFT, we can register it as IP. On line 18 above, it calls a _registerAsIPAsset function:

function _registerAsIPAsset(uint256 tokenId) internal returns (address) {
  try IP_ASSET_REGISTRY.register(block.chainid, address(this), tokenId) returns (address ipId) {
    require(ipId != address(0), "IP Asset registration failed");
    return ipId;
  } catch Error(string memory reason) {
    revert(reason);
  } catch {
    revert("IP Asset registration failed");
  }
}

All this is doing is calling the register function on the IP Asset Registry, which creates a new 🧩 IP Asset in our protocol, and returns an ipId.

4. Set Metadata on IP

Now that we have registered a new IP Asset, we can take our metadata from before and set it on the NFT & IP with the CoreMetadataModule.sol. As described here, we need to set 4 params:

  1. nftMetadataHash
  2. nftMetadataURI
  3. ipMetadataHash
  4. ipMetadataURI
// handles the NFT's `nftMetadataHash`
// handles the IP's `ipMetadataURI` and `ipMetadataHash`
function _mintNFT(address recipient) internal returns (string memory, address) {

  // ... some code here ...

  string memory nftUri = tokenURI(newTokenId);
  bytes32 metadataHash = keccak256(abi.encodePacked(nftUri));
  CORE_METADATA_MODULE.setAll(ipId, nftUri, metadataHash, metadataHash);

  // ... some code here ...

}

// handles the NFT's `nftMetadataURI`
function tokenURI(uint256 tokenId) public view override returns (string memory) {
  return string(abi.encodePacked(_baseUri, StringUtils.uint2str(tokenId), ".json"));
}

5. Register as Derivative

Now that we have minted an NFT, registered it as IP, and set proper metadata, we can register it as a derivative of Ippy. The PiPi.sol contract uses registerDerivativeForToken to handle this:

function registerDerivativeForToken(address ipId) internal {
  address[] memory parentIpIds = new address[](1);
  parentIpIds[0] = 0xB1D831271A68Db5c18c8F0B69327446f7C8D0A42;

  uint256[] memory licenseTermsIds = new uint256[](1);
  licenseTermsIds[0] = 1;

  address licenseTemplate = 0x2E896b0b2Fdb7457499B56AAaA4AE55BCB4Cd316;
  bytes memory royaltyContext = hex"0000000000000000000000000000000000000000";
  uint256 maxMintingFee = 0;
  uint32 maxRts = 0;
  uint32 maxRevenueShare = 0;

  LICENSING_MODULE.registerDerivative(
    ipId,
    parentIpIds,
    licenseTermsIds,
    licenseTemplate,
    royaltyContext,
    maxMintingFee,
    maxRts,
    maxRevenueShare
  );
}

This function calls registerDerivative in the 📜 Licensing Module, with:

  • ipId: the new ipId we got in step 3
  • parentIpIds: an array that contains Ippy's ipId, which is 0xB1D831271A68Db5c18c8F0B69327446f7C8D0A42
  • licenseTermsIds: an array containing 1, which is the license term ID of Non-Commercial Social Remixing (NCSR). This means the derivative can use Ippy for free but not commercialize it
  • licenseTemplate: the address of PILicenseTemplate, found in Deployed Smart Contracts
  • royaltyContext: just set to zero address
  • maxMintingFee, maxRts, and maxRevenueShare can be set to 0. They don't do anything because the license terms are non-commercial.

6. Transfer NFT

Now that the contract has handled registering the IP as a derivative, it transfers the NFT to the user to have ownership over the PiPi IP:

function _mintNFT(address recipient) internal returns (string memory, address) {
  // ... some code here ...
  _safeTransfer(address(this), recipient, newTokenId, "");
  // ... some code here ...
}

7. Done!

Congratulations, you registered a derivative of the official Ippy IP!

View on Explorer

View a derviative PiPi on our explorer.
